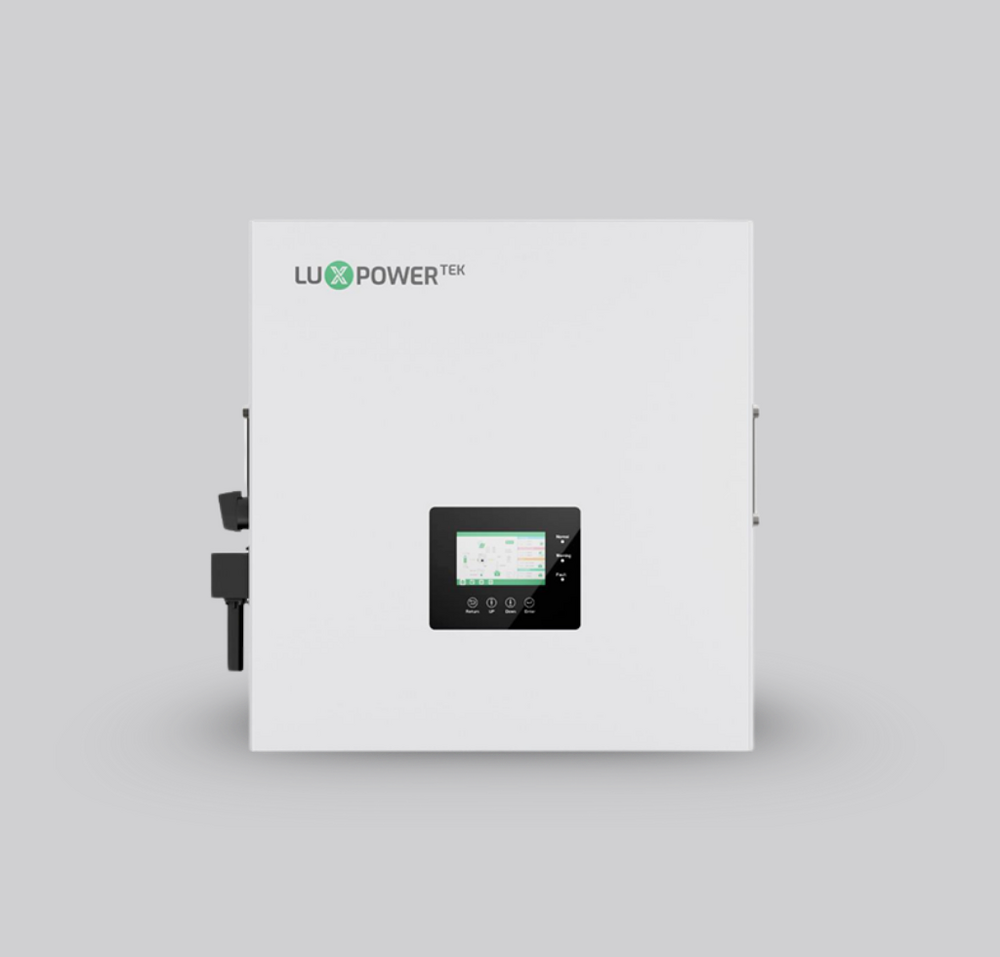

TriP 6-30K Three Phase Hybrid Inverter

Get a Price/Quote

Product Details:

Product Type TriP 6-30K Three Phase Hybrid Inverter
Rated Voltage 220 Volt (V)
Frequency (MHz) 50 Hertz (HZ)
Usage Industrial
Size Standard
Warranty 1 Year
Color White
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

TriP 6-30K Three Phase Hybrid Inverter Price And Quantity

Minimum Order Quantity 1 Piece

TriP 6-30K Three Phase Hybrid Inverter Product Specifications

Product Type TriP 6-30K Three Phase Hybrid Inverter
Features Good Quality
Usage Industrial
Phase 3 Phase
Color White
Frequency 50 Hertz (HZ)
Rated Voltage 220 Volt (V)
Frequency (MHz) 50 Hertz (HZ)
Size Standard
Warranty 1 Year
Display Type Digital
Material Mild Steel
Usage & Applications Industrial

TriP 6-30K Three Phase Hybrid Inverter Trade Information

Supply Ability 10 Piece Per Day
Delivery Time 7 Days

Product Description

The TriP 6-30K Three Phase Hybrid Inverter is a robust industrial solution designed for high-performance energy management across three-phase systems. Crafted with durable mild steel and coated in clean white, this inverter guarantees long-lasting operation and reliability. Rated at 220 Volts, it is engineered to handle industrial applications effectively, maintaining consistent energy output with a frequency of 50 Hertz. The inverter features digital display technology, offering clear and precise readings to ensure optimal efficiency during operation. Its good-quality design is backed by a 1-year warranty, providing peace of mind. Tailored for industrial use, the TriP 6-30K Hybrid Inverter emphasizes seamless integration and sustainable energy optimization for challenging environments.

Specification	TriP 6K	TriP 10K	TriP 20K	TriP 30K
Rated Output Power	6,000W	10,000W	20,000W	30,000W
AC Output Voltage / Frequency	400V, 3-phase, 50/60Hz
Max PV Input Power	9,000W	15,000W	30,000W	45,000W
Max PV Input Voltage	1,000V	1,000V	1,000V	1,000V
MPPT Voltage Range	200850V	200850V	200850V	200850V
MPPT Trackers / Strings per MPPT	2 / 2	2 / 2	3 / 2	3 / 2
Battery Voltage Range	180 800V (HV Battery)
Max Battery Charge/Discharge	6,000W	10,000W	20,000W	30,000W
Surge Power Capacity	150% of rated (10 sec)
System Efficiency (Max)	98.4%	98.4%	98.4%	98.4%
Enclosure Protection	IP65	IP65	IP65	IP65
Cooling Method	Active cooling with smart fan control
Communication Interfaces	RS485, CAN, Ethernet, Wi-Fi (optional)
Dimensions (W H D)	Varies per model (approx. 600700 mm width)
Weight	~5585 kg depending on model
Warranty	5 years standard (extendable to 10 years)

Application

Large residential villas and bungalows
Apartment buildings with solar rooftops
Small-to-medium commercial premises
Microgrids and rural electrification
Backup systems for schools, offices, and clinics

Core Features

High-Voltage Battery Support Efficient storage with longer cable runs and less current loss
Multi-MPPT Input Optimized solar production for varied roof structures
Smart EMS Integration Schedule and prioritize loads intelligently
Seamless Backup Mode Auto-switches to battery during grid failure (<10ms)
Remote Monitoring Real-time control and diagnostics via app/web portal
Outdoor-Ready Design IP65 casing ideal for rooftop or outdoor wall mounting
