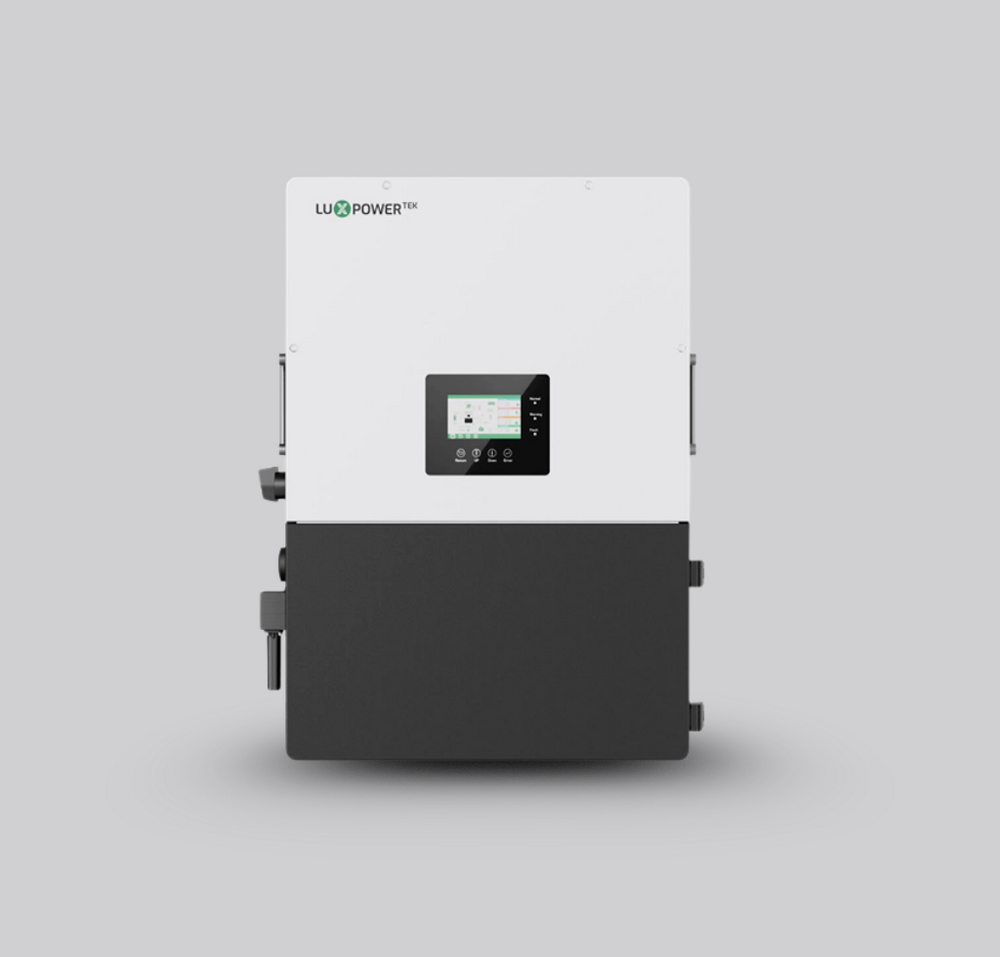

LXP-LB-US 8K 10K Split Phase Hybrid Inverter

Get a Price/Quote

Product Details:

Product Type LXP-LB-US 8K 10K Split Phase Hybrid Inverter
Rated Voltage 220 Volt (V)
Frequency (MHz) 50 Hertz (HZ)
Usage Industrial
Size Standard
Color White
Warranty 1 Year
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

LXP-LB-US 8K 10K Split Phase Hybrid Inverter Price And Quantity

Minimum Order Quantity 1 Piece

LXP-LB-US 8K 10K Split Phase Hybrid Inverter Product Specifications

Features Good Quality
Phase 3 Phase
Usage & Applications Industrial
Rated Voltage 220 Volt (V)
Material Mild Steel
Color White
Frequency (MHz) 50 Hertz (HZ)
Display Type Digital
Size Standard
Usage Industrial
Product Type LXP-LB-US 8K 10K Split Phase Hybrid Inverter
Frequency 50 Hertz (HZ)
Weight 20-35 Kilograms (kg)
Warranty 1 Year

LXP-LB-US 8K 10K Split Phase Hybrid Inverter Trade Information

Supply Ability 10 Piece Per Day
Delivery Time 7 Days

Product Description

The LXP-LB-US 8K 10K Split Phase Hybrid Inverter is a robust solution designed for industrial applications. Operating at a frequency of 50 Hertz, this inverter delivers reliable performance with a rated voltage of 220 Volts in a 3-phase configuration. Constructed with mild steel, it ensures durability and long-lasting usage. The inverter comes in a standard size and features a sleek white finish, complementing modern industrial settings. Equipped with an easy-to-read digital display, it allows for precise monitoring and control. It weighs between 20 to 35 kilograms, ensuring manageable handling during installation. With a 1-year warranty, this hybrid inverter promises dependable operation and good quality, making it an ideal choice for powering industrial systems efficiently.

Specification	LXP-LB-US 8K	LXP-LB-US 10K
Rated Output Power	8,000W	10,000W
AC Output Voltage/Frequency	120/240V, 60Hz (Split-Phase)
Max PV Input Power	12,000W	15,000W
Max PV Input Voltage	600V DC	600V DC
MPPT Voltage Range	150V 550V	150V 550V
MPPT Trackers / Strings	2 / 2	2 / 2
Max PV Input Current (per MPPT)	13A	13A
Battery Voltage Range	40V 60V DC	40V 60V DC
Max Charge/Discharge Power	8,000W	10,000W
Surge Power	2x Rated (10 sec)
Battery Compatibility	Lithium-ion (LFP), Lead-acid
Transfer Time (Grid <-> Backup)	<10ms	<10ms
System Efficiency (Max)	97.8%	97.8%
Communication Interfaces	RS485, CAN, USB, Wi-Fi (optional)
Enclosure Protection	IP65	IP65
Dimensions (W x H x D)	~600 430 220 mm
Weight	~3942 kg
Warranty	5 years standard (extendable)

Application

U.S. homes needing split-phase 120/240V solar + storage
Off-grid cabins, farms, and rural residences
Homeowners seeking backup power for grid outages
Zero-export systems with self-consumption optimization
Smart homes using automation and time-of-use controls

Core Features

Split-Phase Output Native 120/240V output for U.S. homes
48V Battery Compatible Cost-effective storage integration
Dual MPPTs Maximize solar production from multiple arrays
High Surge Handling Supports loads like pumps and compressors
Seamless Switching (<10ms) Keep your lights and appliances running during outages
Flexible Modes Grid-tied, off-grid, hybrid, and backup power modes

FAQs of LXP-LB-US 8K 10K Split Phase Hybrid Inverter:

Q: What is the frequency of the inverter?

A: The LXP-LB-US 8K 10K Split Phase Hybrid Inverter operates at a frequency of 50 Hertz.

Q: What is the rated voltage of this inverter?

A: The inverter is rated for 220 Volts in a 3-phase electrical setup.

Q: What material is used in its construction?

A: The inverter is constructed using mild steel for durability.

Q: Does the inverter come with a warranty?

A: Yes, the inverter comes with a 1-year warranty.

Q: Is the inverter suitable for industrial use?

A: Yes, the inverter is designed specifically for industrial applications.
